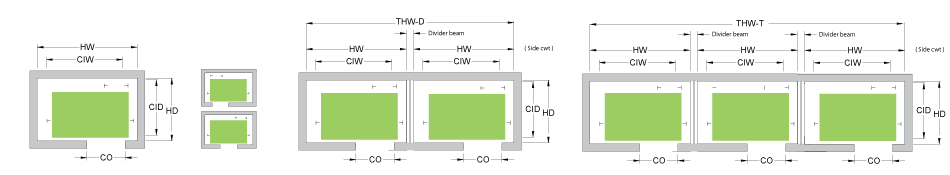

plan Genius

Type of
Opening

Capacity

Hoistway
Width

Hoistway
Depth

Cab
Inside
Width

Cab
Inside
Depth

Clear
Opening

HW1
THW-D4
THW-T4

HD

CIW

CID

CO2

SSP - CO3

2000 lbs
(900 kg)
7'-8"
(2337)
15'-8"
(4775)
23'-8"
(7214)
6'-8"
(2032)
5'-8''
(1727)
4'-3''
(1295)

3’-0” x 7’-0”
(914 x 2134)

SSP - CO

2500 lbs
(1150 kg)
8'-8"
(2642)
17'-8"
(5385)
26'-8"
(8128)
6'-8"
(2032)
6'-8''
(2032)
4'-3''
(1295)

3’-6” x 7’-0”
(1067 x 2134)

SSP - CO

3000 lbs
(1361 kg)
8'-8"
(2642)
17'-8"
(5385)
26'-8"
(8128)
7'-2"
(2184)
6'-8''
(2032)
4'-9''
(1448)

3’-6” x 7’-0”
(1067 x 2134)

SSP - CO

3500 lbs
(1588 kg)
8'-8"
(2642)
17'-8"
(5385)
26'-8"
(8128)
7'-10"
(2388)
6'-8''
(2032)
5'-5''
(1651)

3’-6” x 7’-0”
(1067 x 2134)

CO

4000 lbs
(1814 kg)
9'-8"
(2946)
19'-8"
(5994)
29'-8"
(9042)
7'-10"
(2388)
7'-8''
(2337)
5'-5''
(1651)

4’-0” x 7’-0”
(1219 x 2134)

Notes:
1 - For elevators with occupied space underneath hoistway, hoistway width may change. Please, contact us for dimensions.
2 - Optional custom height door opening also available
     For glassback dimensions, please contact us.
3 - 36" CO entrances not supported by nonmandatory appendix E = Elevator requirements for persons with physical disabilities in regions that support CNBC.
4- The hoistway width is calculated with 4" wide divider beams. Please adjust accordingly if necessary.

* Global Tardif is specialized in product customization. The table above indicates dimensions for standard products, however these are flexible. Contact us.

Speed
fpm
(m/s)
Minimum
Overhead 6
Pit
Depth
OH5
P
Minimum
Recommander
200
(1)
15'-0"
16'-6"
5'-6"
(1676 mm)
350
(1.75)
15'-6"
17'-0"
5'-6"
(1676 mm)
500
(2.5)
16'-6"
18'-0"
6'-6"
(1981 mm)

5 - Overhead for 8' height cab
     For 9' height cab add 1' to overhead
     For 10' height cab add 2' to overhead

6 - Minimum overhead leaves a 6" clearance above elevator motor.
     To avoid any installation and/or maintenance problems, GT recommends increasing this clearance to 24".

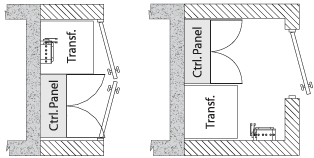

Control Room
Type
Width
Depth
Height
Closet Door
5'-9"
(1753)
3'-0"
(914)
8'-0"
(2438)
Single Door
5'-9"
(1753)
4'-9"
(1448)
8'-0"
(2438)

GT MRL Network is a program of GLOBAL TARDIF Elevator Manufacturing Group
Global-Tardif reserves the right to discontinue models or options at any time or change the specifications, warranty terms, materials, equipment or pricing
without notice and without incurring obligation.
