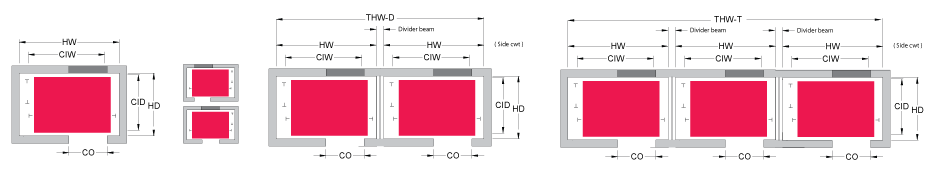

plan Express

Type of
Opening

Capacity

Hoistway
Width

Hoistway
Depth

Cab
Inside
Width

Cab
Inside
Depth

Clear
Opening

HW1
THW-D4
THW-T4

HD

CIW

CID

CO2

SSP - CO3

2000 lbs
(900 kg)

7’-8”
(2337)
15'-8"
(4775)
23'-8"
(7214)

5’-10”
(1778)

5’-8”
(1727)

4’-3”
(1295)

3’-0” x 7’-0”
(914 x 2134)

SSP - CO

2500 lbs
(1134 kg)

8’-8”
(2642)
17'-8"
(5385)
26'-8"
(8128)

5’-10”
(1778)

6’-8”
(2032)

4’-3”
(1295)

3’-6” x 7’-0”
(1067 x 2134)

SSP - CO3

2000 lbs
(900 kg)

7’-8”
(2337)
15'-8"
(4775)
23'-8"
(7214)

6’-7 1/4”
(2013)

5’-8”
(1727)

4’-3 3/4”
(1314)

3’-0” x 7’-0”
(914 x 2134)

SSP - CO

2500 lbs
(1134 kg)

8’-8”
(2642)
17'-8"
(5385)
26'-8"
(8128)

6’-7 1/4”
(2013)

6’-8”
(2032)

4’-3 3/4”
(1314)

3’-6” x 7’-0”
(1067 x 2134)

Notes:
1 - For elevators with occupied space underneath hoistway, hoistway width may change. Please, contact us for dimensions.
2 - Optional custom height door opening also available
      For glassback dimensions, please contact us.
3 - 36" CO entrances not supported by nonmandatory appendix E = Elevator requirements for persons with physical disabilities in regions that support CNBC.
4- The hoistway width is calculated with 4" wide divider beams. Please adjust accordingly if necessary.

* Global Tardif is specialized in product customization. The table above indicates dimensions for standard products, however these are flexible. Contact us.

Speed
fpm
(m/s)
Minimum
Overhead 6
Pit
Depth
OH5
P
Minimum
Recommended
150 (0.75)
200 (1.00)
15'-6"
15'-6"
17'-0"
17'-0"

5'-6" (1676 mm)
5'-6" (1676 mm)

5 - Overhead for 8' height cab
      For 9' height cab add 1' to overhead
      For 10' height cab add 2' to overhead
6 - Minimum overhead leaves a 6" clearance above elevator motor.
      To avoid any installation and/or maintenance problems, GT recommends increasing this clearance to 24".


Control Room
Type
Width
Depth
Height
Closet Door
5'-9"
(1753)
3'-0"
(914)
8'-0"
(2438)
Single Door
5'-9"
(1753)
4'-9"
(1448)
8'-0"
(2438)
