GT VisionLift Express™
Pre-Engineered Hydraulic Elevator

Holeless Twin Jack Direct Roped Passenger type

View it with Adobe® Reader® Single speed opening Center opening Download Autocad File Autocad Single Speed Opening Center opening Plot Style File (.CTB)   Overhead dimension Speed Overhead (OH) up to 100 12'-6" 125 12'-6" 150 12'-6" Pit dimensions Location Depth USA - Canada (except Ontario) 4'-0'' Ontario 5'-0'' Machine room dim. Width Depth 6'-6'' 6'-6'' View it with Adobe® Reader® Single speed opening Center opening Download Autocad File Autocad Single Speed Opening Center opening Plot Style File (.CTB)

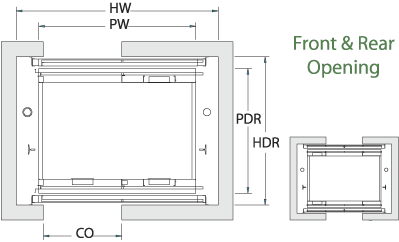

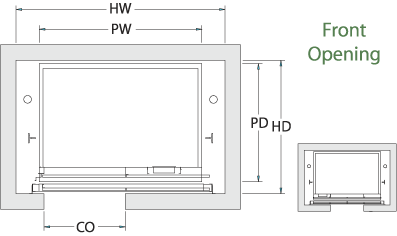

Hoistway width Hoist depth Platform width Platform depth Cab inside width Cab inside depth Clear opening HW HD PW PD CIW CID CO 108" 2743 69" 1753 84" 2134 61" 1549 80" 2032 51" 1295 42" x 84" 1067 x 2134 Hoistway width Hoist depth Platform width Platform depth Cab inside width Cab inside depth Clear opening HW HDR PW PDR CIW CID CO 108" 2743 79 1/4" 2013 84" 2134 66 3/4" 1695 80" 2032 51 3/4" 1314 42" x 84" 1067 x 2134

Holeless Twin Jack Direct Roped Hospital type

View it with Adobe® Reader® Download Autocad File Autocad Plot Style File (.CTB)   Overhead dimension Speed Overhead (OH) up to 100 12'-6" 125 12'-6" 150 12'-6" Pit dimensions Location Depth USA - Canada (except Ontario) 4'-0'' Ontario 5'-0'' Machine room dim. Width Depth 6'-6'' 6'-6'' View it with Adobe® Reader® Download Autocad File Autocad Plot Style File (.CTB)

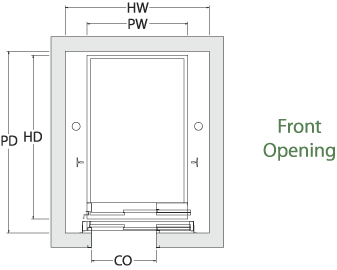

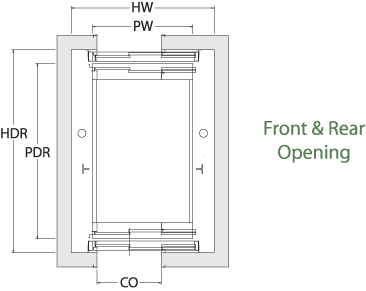

Hoistway width Hoist depth Platform width Platform depth Cab inside width Cab inside depth Clear opening HW HD PW PD CIW CID CO 80" 2032 101" 2565 56" 1422 91" 2311 52" 1321 80" 2032 36" x 84" 915 x 2134 Hoistway width Hoist depth Platform width Platform depth Cab inside width Cab inside depth Clear opening HW HDR PW PDR CIW CID CO 80" 2032 114 1/4" 2902 56" 1422 98 3/4" 2508 52" 1321 80 3/4" 2051 36" x 84" 915 x 2134
