Usine Global Tardif

GT VisionLift HydraulicTM
Holeless Twin Jack Roped
Passenger type

Technical guide

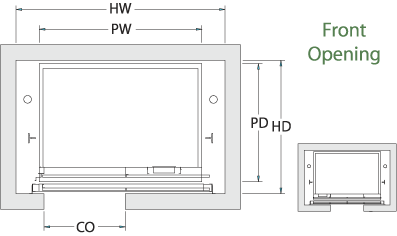

Front opening


Click on the link to get the drawing

Type of
opening		 Capacity Hoistway width Hoistway depth Platform
width		 Platform
depth		 Cab inside
width		 Cab inside
depth		 Clear
opening
Drawing
HW
HD
PW
PD
CIW
CID
CO
2100 Lbs
(953 Kg)
8'-0"
(2438)
5'-9"
(1753)
6'-0"
(1829)
5'-1"
(1549)
5'-8"
(1727)
4'-3"
(1295)
3'-0" x 7'-0"
(914 x 2134)
2500 Lbs
(1134 Kg)
9'-0"
(2743)
5'-9"
(1753)
7'-0"
(2134)
5'-1"
(1549)
6'-8"
(2032)
4'-3"
(1295)
3'-6" x 7'-0"
(1067 x 2134)
3000 Lbs
(1361 Kg)
9'-0"
(2743)
6'-3"
(1905)
7'-0"
(2134)
5'-7"
(1702)
6'-8"
(2032)
4'-9"
(1448)
3'-6" x 7'-0"
(1067 x 2134)
3500 Lbs
(1588 Kg)
9'-0"
(2743)
6'-11"
(2108)
7'-0"
(2134)
6'-3"
(1905)
6'-8"
(2032)
5'-5"
(1651)
3'-6" x 7'-0"
(1067 x 2134)
4000 Lbs
(1814 Kg)
10'-0"
(3048)
6'-11"
(2108)
8'-0"
(2438)
6'-3"
(1905)
7'-8"
(2337)
5'-5"
(1651)
4'-0" x 7'-0"
(1219 x 2134)

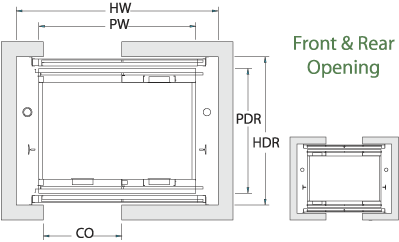

Front & rear opening


Click on the link to get the drawing

Type of
opening		 Capacity Hoistway width Hoistway depth Platform
width		 Platform
depth		 Cab inside
width		 Cab inside
depth		 Clear
opening
Drawing
HW
HD
PW
PD
CIW
CID
CO
2100 Lbs
(953 Kg)
8'-0"
(2438)
6'-7 1/4"
(2013)
6'-0"
(1829)
5'-6 3/4"
(1695)
5'-8"
(1727)
4'-3 3/4"
(1314)
3'-0 x 7'-0"
(914 x 2134)
2500 Lbs
(1134 Kg)
9'-0"
(2743)
6'-7 1/4"
(2013)
7'-0"
(2134)
5'-6 3/4"
(1695)
6'-0"
(2032)
4'-3 3/4"
(1314)
3'-6" x 7'-0"
(1067x2134)
3000 Lbs
(1361 Kg)
9'-0"
(2743)
7'-1 1/4"
(2165)
7'-0"
(2134)
6'-0 3/4"
(1848)
6'-8"
(2032)
4'-9 3/4"
(1467)
3'-6" x 7'-0"
(1067x2134)
3500 Lbs
(1588 Kg)
9'-0"
(2743)
7'-9 1/4"
(2369)
7'-0"
(2134)
6'-8 3/4"
(2051)
6'-8"
(2032)
5'-5 3/4"
(1670)
3'-6" x 7'-0"
(1067x2134)
4000 Lbs
(1814 Kg)
10'-0"
(3048)
7'-9 1/4"
(2369)
8'-0"
(2438)
6'-8 3/4"
( 2051)
7'-8"
(2337)
5'-5 3/4"
(1670)
4'-0" x 7'-0"
(1219x2134)


Pit dimension

Speed
Overhead (OH)
up to 100
12'-6''
125
12'-6''
150
12'-6''

Pit dimension

Location
Pit depth
USA - Canada
(except Ontario)
4'-0''
Ontario
5'-0''

Elevations

 View with Adobe® Reader® (PDF)
Front opening
Front & rear opening

Download Autocad file (DWG)
Front opening
Front & rear opening
