Usine Global Tardif

GT VisionLift HydraulicTM
Holed (in-ground) - Hospital type

Technical guide

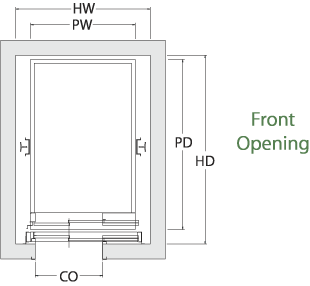

Hoistway Front Opening


Click on the link to obtain the corresponding drawing :

Type of
opening		 Capacity Hoistway width Hoistway depth Platform
width		 Platform
depth		 Cab inside
width		 Cab inside
depth		 Clear
opening
Drawings
HW
HD
PW
PD
CIW
CID
CO
4000 Lbs
1814 Kg
7'-4"
(2235)
9'-8"
(2946)
5'-8'
(1727)
8'-10 1/2"
(2705)
5'-4"
(1626)
7'-11"
(2413)
4'-0" x 7'-0"
(1219 x 2134)
4500 Lbs
2041 Kg
7'-4"
(2235)
9'-8"
(2946)
6'-0"
(1829)
8'-10 1/2"
(2705)
5'-8"
(1727)
7'-11"
(2413)
4'-0" x 7'-0"
(1219 x 2134)
5000 Lbs
2268 Kg
8'-1"
(2264)
10'-3"
(3124)
6'-3"
(1905)
9'-5 1/2"
(2883)
5'-11"
(1803)
8'-6"
(2591)
4'-6" x 7'-0"
(1372 x 2134)

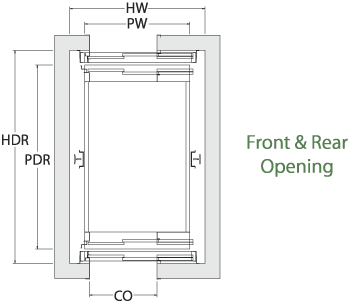

Front & Rear Opening


Click on the link to obtain the corresponding drawing

Type of
opening		 Capacity Hoistway width Hoistway depth Platform
width		 Platform
depth		 Cab inside
width		 Cab inside
depth		 Clear
opening
Drawings
HW
HDR
PW
PDR
CIW
CID
CO
4000 Lbs
1814 Kg
7'-4"
(2235)
10'-9 1/4"
(3283)
5'-8'
(1727)
9'-5 3/4"
(2889)
5'-4"
(1626)
7'-11 3/4"
(2432)
4'-0" x 7'-0"
(1219 x 2134)
4500 Lbs
2041 Kg
7'-4"
(2235)
10'-9 1/4"
(3283)
6'-0"
(1829)
9'-5 3/4"
(2889)
5'-8"
(1727)
7'-11 3/4"
(2432)
4'-0" x 7'-0"
(1219 x 2134)
5000 Lbs
2268 Kg
8'-1"
(2264)
11'-4 1/4"
(3461)
6'-3"
(1905)
10'-0 3/4"
(3067)
5'-11"
(1803)
8'-6 3/4"
(2610)
4'-6" x 7'-0"
(1372 x 2134)



Overhead dimension

VSpeed
Overhead (OH)
up to 100
12'-2''
125
12'-3''
150
12'-4''

Pit dimension

Location
Pit depth
USA - Canada
(except Ontario)
4'-0''
Ontario
5'-0''



Elevations

 View with Adobe® Reader® (PDF)
Front opening
Front & rear opening

Download Autocad file (DWG)
Front opening
Front & rear opening
